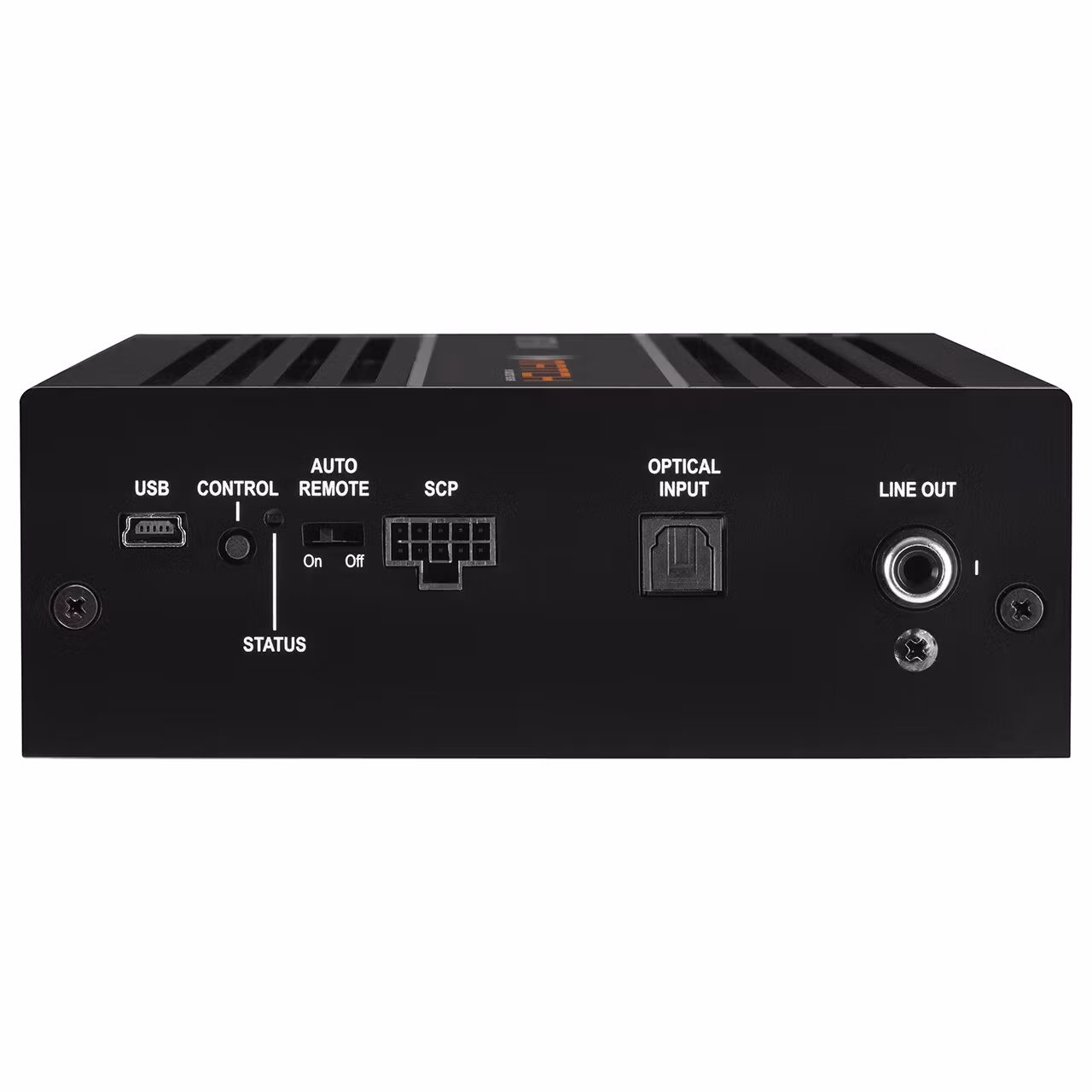

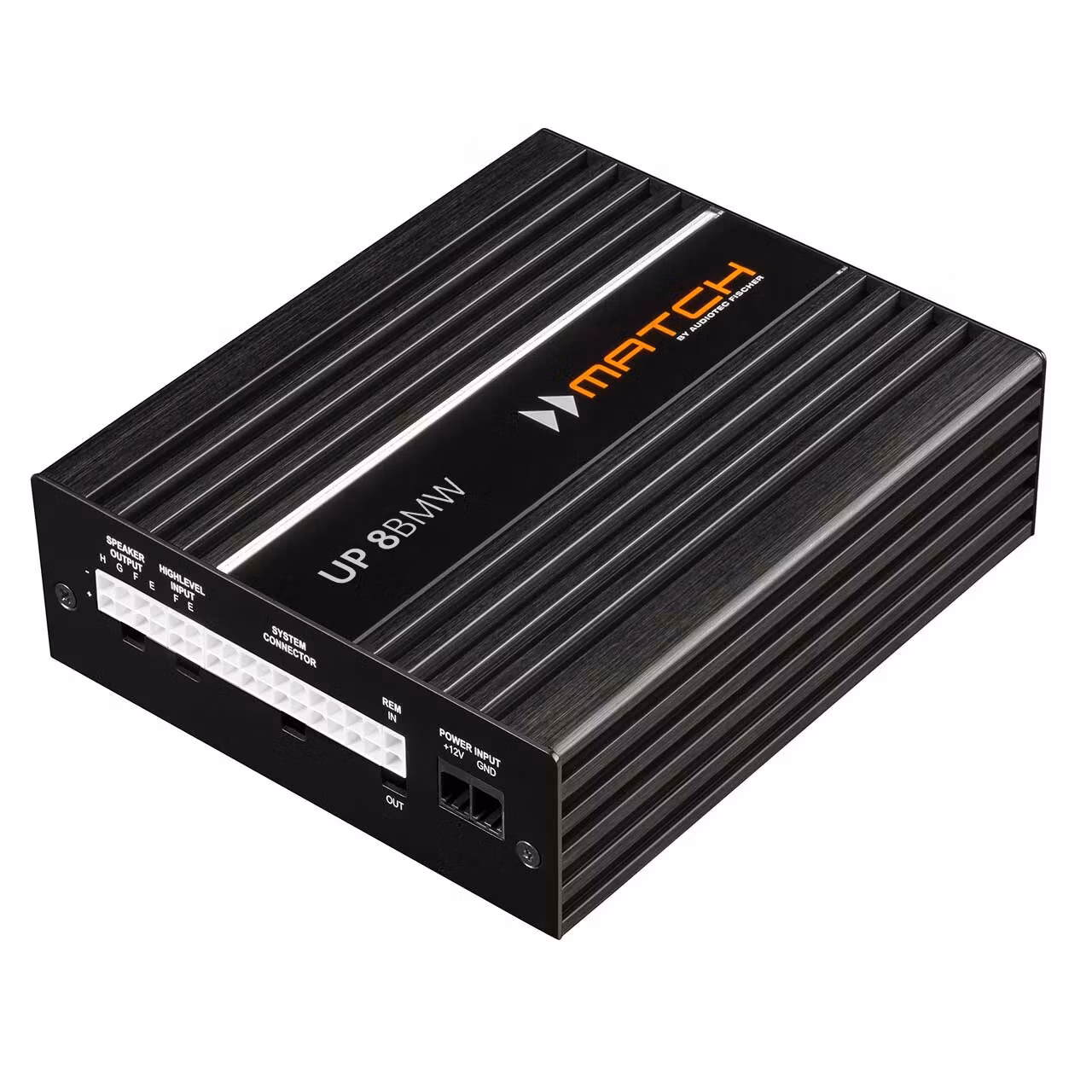

Match UP 8BMW

Technical data Output power RMS - @ 4 Ohms Channels A - F: 6 x 65 Watts - @ 2 Ohms - - @ 1 Ohm - - bridged @ 4 Ohms - - bridged @ 2 Ohms - - Subwoofer output @ 4 Ohms Kanal G - H: 2 x 90 Watts - Subwoofer output @ 2 Ohms Kanal G - H: 2 x 160 Watts Amplifier technology Class GD Inputs 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x MEC 1 x Remote In Input sensitivity 2.8 - 11 Volts Input impedance RCA / Cinch - Input impedance highlevel 9 - 33 Ohms with ADEP.3 Outputs 8 x Speaker output 1 x RCA / Cinch 1 x Remote Out Output voltage RCA / Cinch 3 Volts RMS Frequency response 10 Hz - 22,000 Hz DSP resolution 64 Bit DSP power 295 MHz (1.2 billion MAC operations/second) Sampling rate 48 kHz DSP type Audio signal processor Signal converters A/D: BurrBrown D/A: BurrBrown Signal-to-noise ratio digital input 106 dB (A-weighted) Signal-to-noise ratio analog input 104 dB (A-weighted) Distortion (THD) 0.03 % Damping factor 100 Operating voltage 10.5 - 17 Volts (max. 5 sec. down to 6 Volts) Power rating DC 12 V ⎓ 40 A max. Idle current 380 mA Max. remote output current 500 mA Operating temperature range -40° C to +70° C Fuse 1 x 25 A LP-Mini-fuse (APS) Additional features Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out Dimensions (H x W x D) 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02″ Compatibility Compatible for BMW E & F as well as G30 / G31 (pre-facelift) models with BMW HiFi sound system (option 676). All models with RAM module are excluded (vehicles from 09/2019). Mounting plate not suitable for 1-series E models. Please check the vehicle compatibility via the Upgrade-Finder. Scope of delivery 1 x Amplifier MATCH UP 8BMW 1 x BMW HiFi Plug & Play connection cable 1 x Mounting plate & material for BMW vehicles 1 x USB cable 1 x Instruction manual
