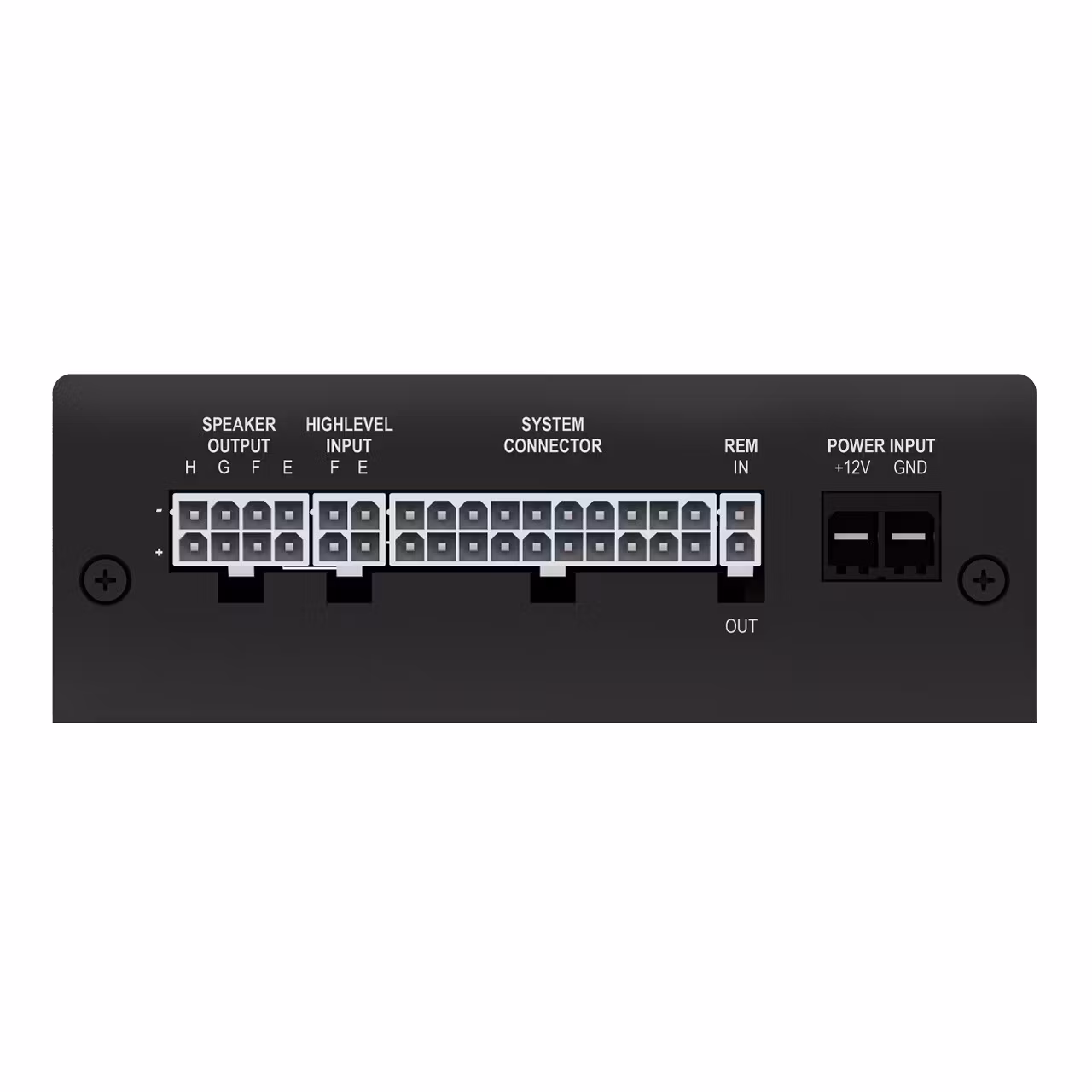

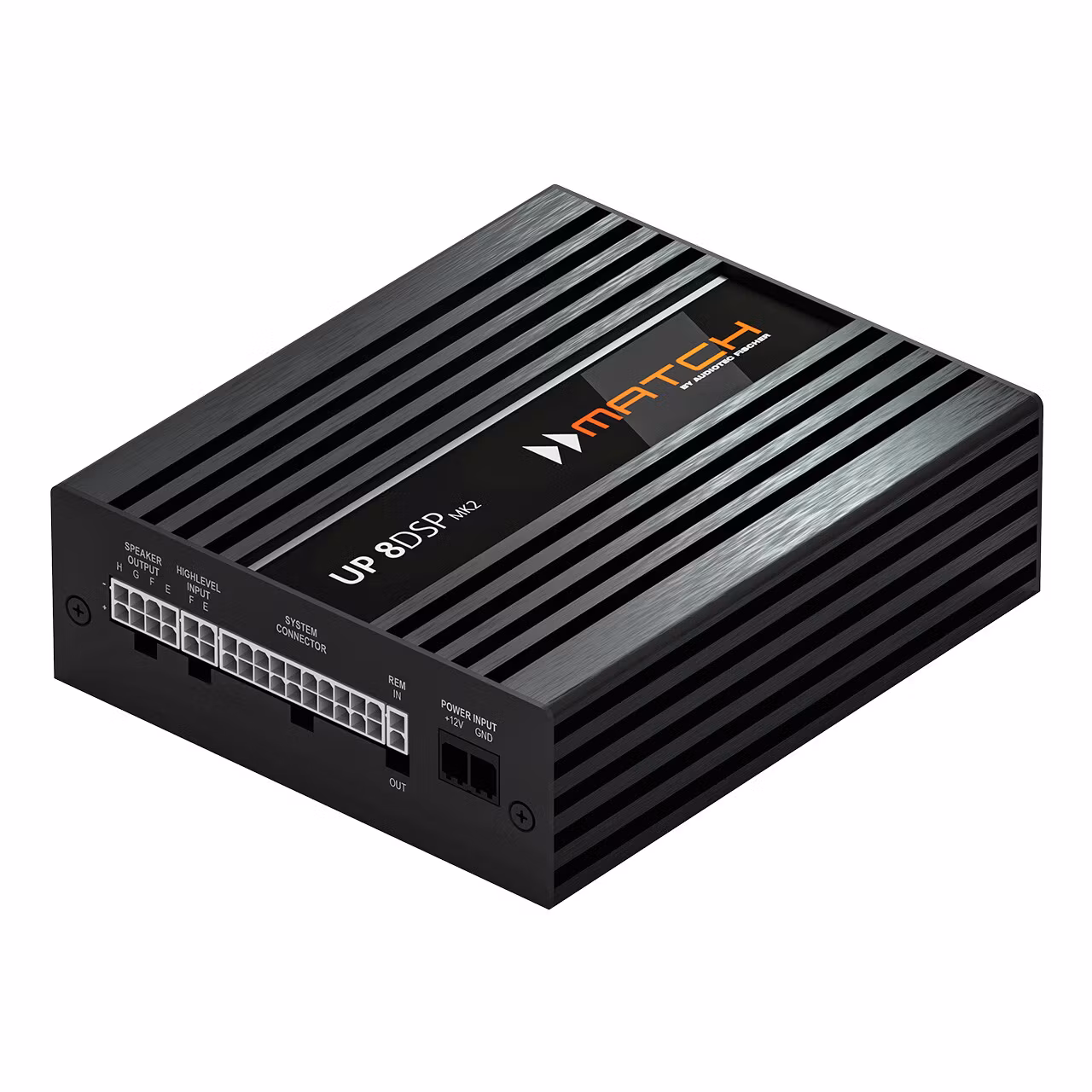

MATCH UP 8DSP MK2

Technical data Power RMS ≤ 1% THD+N - @ 4 Ohms Channels A - F: 65 Watts (min. 3 Ohms*) Channels G - H: 75 Watts (min. 3 Ohms*) - @ 2 Ohms Channels G - H: 125 Watts - @ 1 Ohm - - bridged @ 4 Ohms - - bridged @ 2 Ohms - Max. output power per channel** Channels A - F: up to 80 Watts RMS @ 4 Ohms Channels G - H: up to 90 Watts RMS @ 4 Ohms Channels G - H: up to 160 Watts RMS @ 2 Ohms Amplifier technology Class GD Inputs 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Extension Card 2.0 Input sensitivity 2.8 - 11 Volts Input impedance RCA / Cinch - Input impedance highlevel 9 - 33 Ohms with ADEP.3 Outputs 8 x Speaker output 1 x RCA / Cinch 1 x Remote Out Output voltage RCA / Cinch 3 Volts RMS Frequency response 15 Hz - 22,000 Hz DSP resolution 64 Bit DSP power 295 MHz (1.2 billion MAC operations/second) Sampling rate 48 kHz DSP type Audio signal processor Signal converters A/D: BurrBrown D/A: BurrBrown Signal-to-noise ratio digital input 104 dB (A-weighted) Signal-to-noise ratio analog input 100 dB (A-weighted) Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.015 % Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 % Distortion (THD @ 100 Hz, 1 W into 4 Ohms) - Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) - Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts) Power rating DC 12 V ⎓ 40 A max. Idle current 380 mA Max. remote output current 500 mA Operating temperature range -40° C to +70° C Fuse 2 x 25 A LP-Mini-fuse (APS) Additional features Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch Dimensions (H x W x D) 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02″ * DC resistance min. 3.0 Ohms ** In typical multi-channel applications Scope of delivery 1 x MATCH UPGRADE amplifier UP 8DSP MK2 4 x Connection cable 1 x Power Input connector 1 x Mounting plates & material 1 x USB cable 1 x Instruction manual
