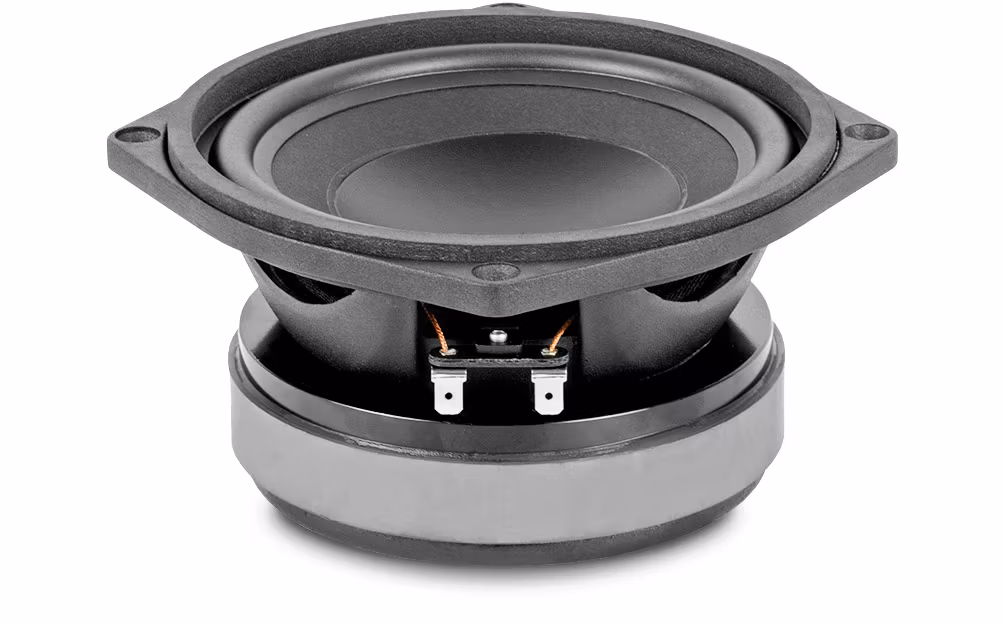

Beyma 6P200fe - 4OHM

file_download

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

200 W AES

Nominal diameter

165 mm 6.5 in

Sensitivity

93 dB 1 W @ 1 m @ ZN

Minimum impedance

5.9 ohm

Frequency range

60-9000 Hz

Program power

400 W

Recommended enclosure volume

9 l

Voice coil diameter

50.8 mm 2 in

BL factor

10.5 N /A

Moving mass

0.017 kg

Winding length

14 mm

Air gap height

9 mm

Xdamage pp

20 mm

PARAMETERS THIELE & SMALL

Fs

58 Hz

Re

4.9 ohm

Qms

4.6

Qes

0.27

Qts

0.26

Vas

11.1 l

Cms

429 µm / N

Rms

1.4 kg / s

Efficiency %

0.75

Sd

0.0135 m²

Xmax

5 mm

Vd

68 cm³

Le @1 kHz

0.3 mH

CONSTRUCTION DETAILS

Depth

87.5 mm 3.45 in

Net weight

3.1 kg 6.83 lb

Total weight

3.5 kg 7.77 lb

Magnet

Ferrite
