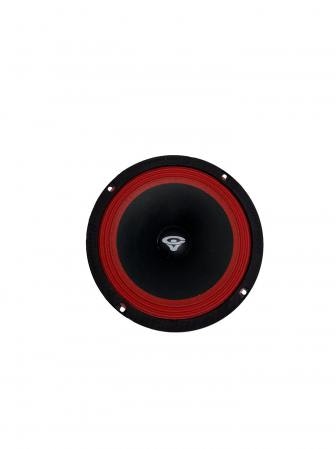

Cerwin Vega CVP8
Artikelnummer:
CVP8
Speaker Size | 8” |
---|
Nominal Impedance (ohms) | 4Ω |
---|
RMS Power Rating | 170W RMS |
---|
Max Power Rating | 350W MAX |
---|
Voice Coil Diameter (inch/mm) | 1.5" |
---|
Types | Full Range |
---|
SPL (db) | 95 |
---|
Re (Ω)[series] | 3.2 |
---|
Qms | 5.62 |
---|
Qes | 1.01 |
---|
Qts | 0.86 |
---|
Fs-Free Air Resonance (Hz) | 95 |
---|
Vas (Liter) | 15.9 |
---|
Cms (mm/N) | 0.25 |
---|
Mms (g) | 11.3 |
---|
Sd (cm²) | 213.8 |
---|
BL (T*M) | 4.6 |
---|
Xmax - Inch(mm) | 1.0 |
---|
Pwr (W) NOM/MAX | 170/350 |
---|
Total Diameter | 8.23" (209mm) |
---|
Mounting Diameter (inch/mm) | 7.17" (182mm) |
---|
Mounting Depth | 2.66" (67.5mm) |
---|
Total Depth | 2.76" (70mm) |
---|
Magnet Diameter (E) | 4.53" (115mm) |
---|
Grille | NO |
---|
