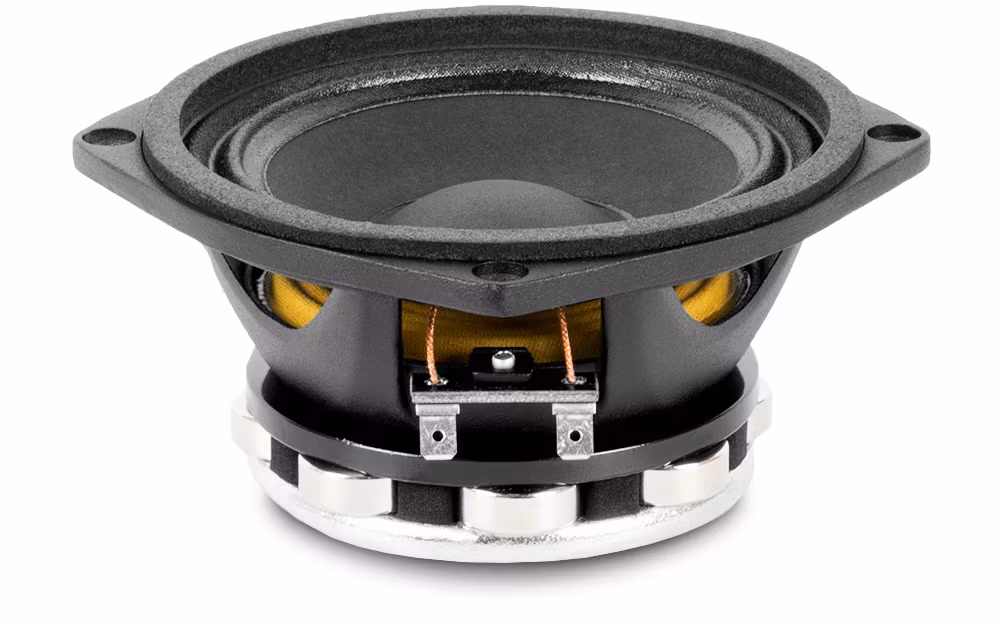

TECHNICAL SPECIFICATIONS
Nominal impedance
8 Ohm
Power capacity
100 W AES
Nominal diameter
125 mm 5 in
Sensitivity
92 dB 1 W/1 m @ ZN
Minimum impedance
6.9 ohm
Frequency range
150-17000 Hz
Program power
200 W
Recommended enclosure volume
10 / 20 l 0.35 / 0.7 ft.³
Voice coil diameter
38.1 mm 1.5 in
BL factor
10 N / A
Moving mass
0.009 kg
Winding length
9 mm
Air gap height
7 mm
Xdamage pp
20 mm
PARAMETERS THIELE & SMALL
Fs
140 Hz
Re
6.6 ohm
Qms
2.8
Qes
0.53
Qts
0.45
Vas
1.4 l
Cms
143 µm / N
Rms
2.9 kg/s
Efficiency %
0.7
Sd
0.0085 m²
Xmax
3 mm
Vd
26 cm³
Le @1 kHz
0.2 mH
CONSTRUCTION DETAILS
Depth
72 mm 2.83 in
Net weight
1.2 kg 2.64 Ib.
Total weight
1.3 kg 2.86 lb
Magnet
Neodymium
