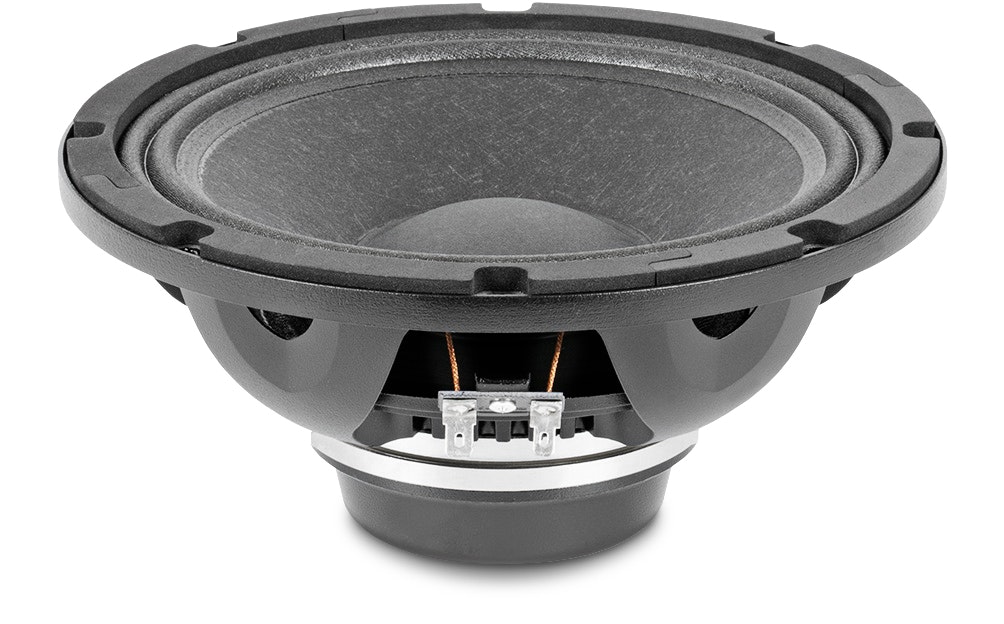

Beyma 8MC300Nd - 16ohm

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

300 W AES

Nominal diameter

200 mm 8 in

Sensitivity

96 dB 1 W @ 1 m @ 2?

Minimum impedance

7.5 ohm

Frequency range

80-4000 Hz

Program power

600 W

Voice coil diameter

50.8 mm 2 in

BL factor

16 N/A

Moving mass

0.025 kg

Winding length

15 mm

Air gap height

7 mm

Xdamage pp

35 mm

PARAMETERS THIELE & SMALL

Fs

76 Hz

Re

6.2 ohm

Qms

6.2

Qes

0.29

Qts

0.28

Vas

11.6 l

Cms

171 µm / N

Rms

2 kg/s

Efficiency %

1.7

Sd

0.022 m²

Xmax

6 mm

Vd

132 cm³

Le @1 kHz

0.5 mH

CONSTRUCTION DETAILS

Depth

96 mm 3.78 in

Net weight

1.9 kg 4.18 lb

Total weight

2.2 kg 4.85 lb

Magnet

Neodymium
