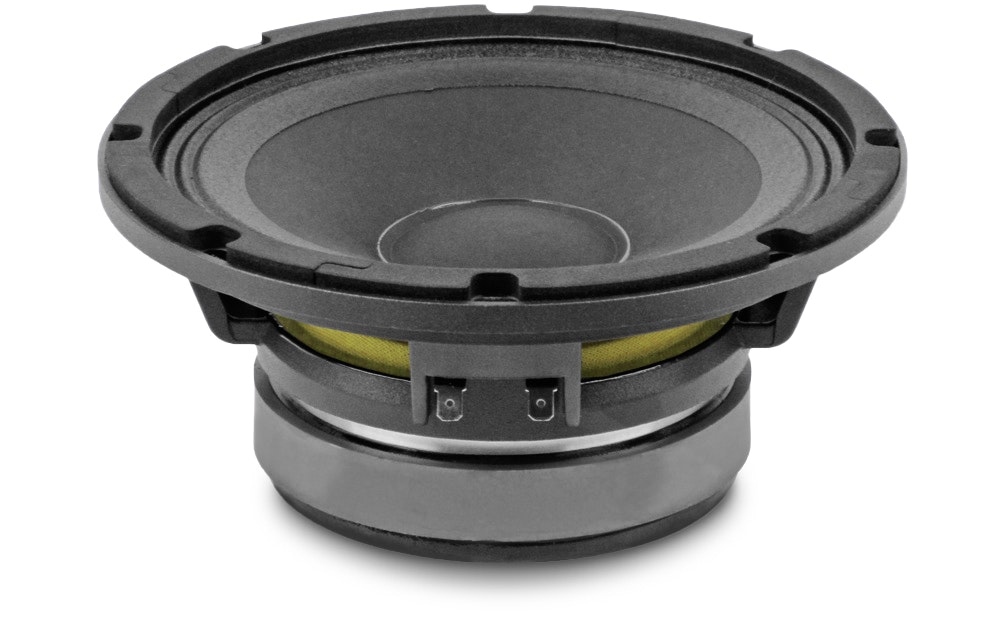

Beyma 8MI100 - 4 OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

250 W AES

Nominal diameter

200 mm 8 in

Sensitivity

96 dB 1 W/1 m @ ZN

Minimum impedance

7.6 ohm

Frequency range

100-7000 Hz

Program power

500 W

Voice coil diameter

50.8 mm 2 in

BL factor

11.5 N/A

Moving mass

0.019 kg

Winding length

9 mm

Air gap height

7 mm

PARAMETERS THIELE & SMALL

Fs

90 Hz

Re

6 ohm

Qms

7.5

Qes

0.48

Qts

0.45

Vas

12 l

Cms

175 µm / N

Rms

1.4 kg / s

Efficiency %

1.6

Sd

0.022 m²

Xmax

3 mm

Vd

66 cm³

Le @1 kHz

0.2 mH

CONSTRUCTION DETAILS

Depth

94 mm 3.7 in

Net weight

3.1 kg 6.83 lb

Total weight

3.25 kg 7.15 lb

Magnet

Ferrite
