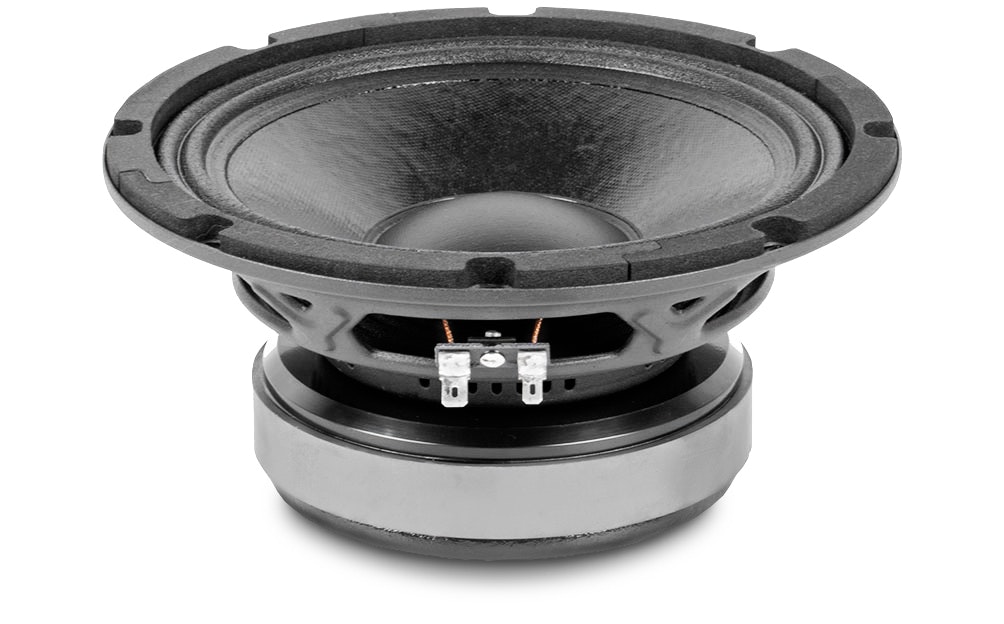

Beyma 8WRS300 - 16ohm

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

300 W AES

Nominal diameter

200 mm 8 in

Sensitivity

95 dB 1 W/1 m @ ZN

Minimum impedance

7.6 ohm

Frequency range

65-4000 Hz

Program power

600 W

Recommended enclosure volume

12 l

Voice coil diameter

50.8 mm 2 in

BL factor

15.2 N/A

Moving mass

0.028 kg

Winding length

15 mm

Air gap height

8 mm

Xdamage pp

32 mm

PARAMETERS THIELE & SMALL

Fs

65 Hz

Re

6 ohm

Qms

5.4

Qes

0.3

Qts

0.28

Vas

15 l

Cms

214 µm / N

Rms

2.1 kg / s

Efficiency %

1.3

Sd

0.022 m²

Xmax

6 mm

Vd

132 cm³

Le @1 kHz

0.9 mH

CONSTRUCTION DETAILS

Depth

95 mm 3.74 in

Net weight

3.25 kg 7.16 lb

Total weight

3.55 kg 7.8 lb

Magnet

Ferrite
