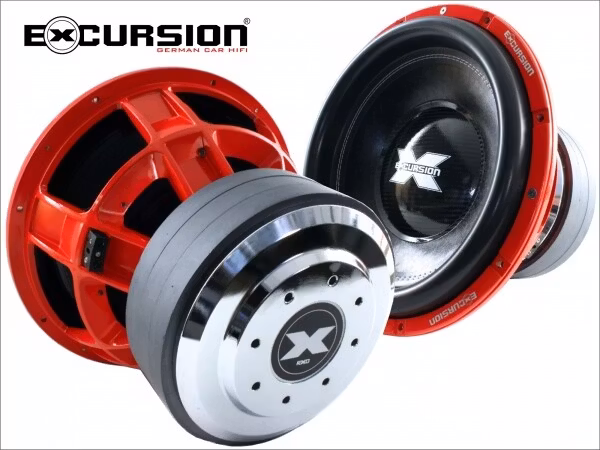

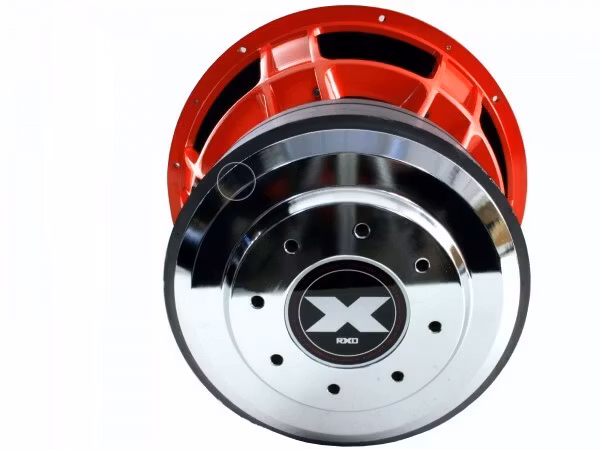

Excursion RXD 15 D2

4" CCAR 4L Alu Flat Spule
1000oz Y35 Tripple Stack Motor
MD=283mm ID=356mm OD=394mm
Dual Composite black linear Spider
8GA Terminal - 10GA Dual Tinseal
White stiched 70:5 XHDR Surrounds

VC Roll Range height 85mm
XMAX linear 30 / 60 mm
DC Widerstand 2x 1.5Ohm
BL @ Series 27.06
Suspension Compliance Cms 0.029
Mechanical Q Factor Qms 4.36
Electrical Q Factor Qes 0.65
Total Q Factor Qts 0.57
Moving Mass Mms 540.3 g
Eq.Cas Air Load( liters) VAS Liter 28.6
Resonant Frequency Fs 37 Hz
Effective Piston Area SD 829.5

Tekniska data
