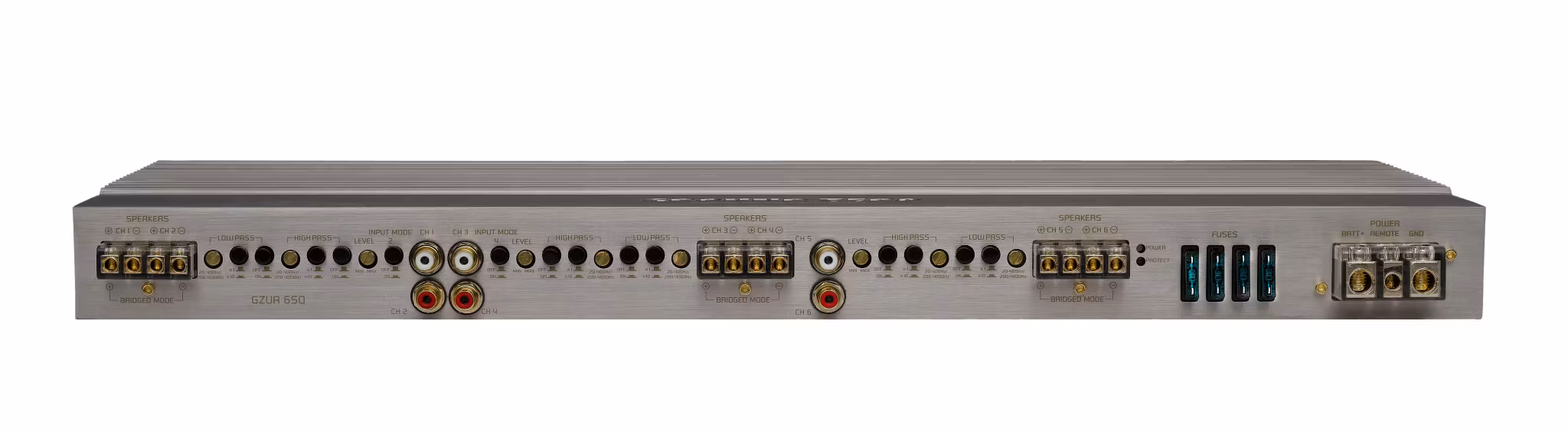

Ground Zero GZUA 6SQ

- • 6-Channel SQ Amplifier
- • 4 x 175W + 2 x 280W
- • wide bandwidth hpf / lpf filters
- • Ultimate sound quality
- • Adjustable BIAS setting - MODELSPEC: Vahvistimet - TECHNICALDATA: 6-channel high-end class A/B SQ amplifier Output power: - 4x 110 W RMS + 2x 160 W RMS @ 4 ohms - 4x 175 W RMS + 2x 280 W RMS @ 2 ohms - 2x 425 W max. + 1x 650 W max. @ 4 ohms (bridged) 2 ohms stable (stereo operation) THD+N 0.01% Frequency Response 10 Hz - 70kHz ( -3dB ) LPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 ) HPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 ) Band Pass Filter 20 Hz - 4000Hz ( x10 ) SNR:  110dB Damping Factor: 800 Adjustable BIAS setting Adjustable high and low pass filters with wide bandwidth Bandpass function with activated high and low pass filter Adjustable input sensitivity Power on delay Temperature / short circuit / overload protection. Dimensions: 209 x 48 x 550 mm
