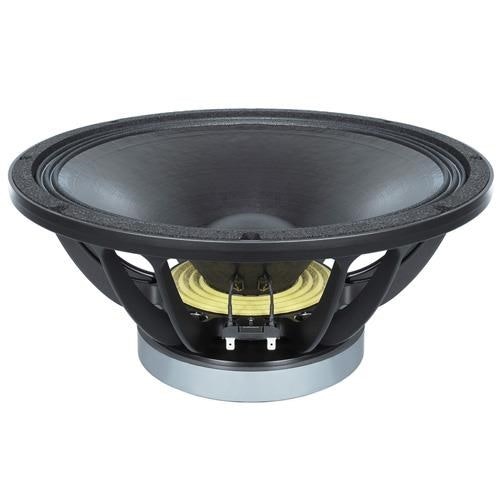

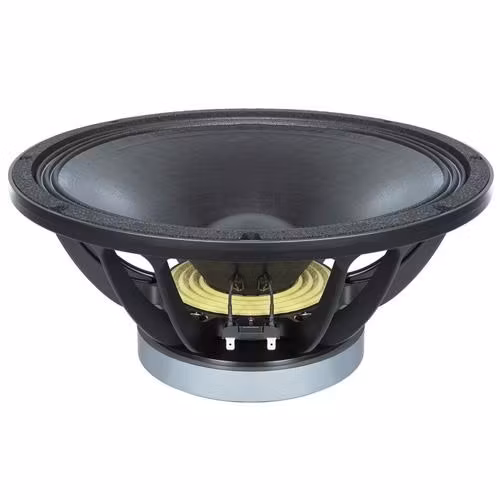

B&C 15FW76 - 8ohm

  • 3 838 kr
Tillgänglig
Artikelnummer: 15FW76
Dela

15" high efficiency low frequency driver.

SPECIFICATIONS
Nominal Diameter: 15", 381mm
Nominal Impedance: 8 ohms
Nominal Power: 500w rms, 1000w program
Freq. Response: 40 Hz-2.0 kHz
Sensitivity: 100 db 1w/1m
Voice Coil Diameter: 3", 76mm
MOUNTING INFORMATION
Overall Diameter: 15.5", 393mm
Baffle Hole Diameter: 13.9", 354mm
Number of Mounting Holes: 8
Mounting Hole BCD: 14.7", 374mm
Depth: 6.9", 175mm
T/S PARAMETERS
Fs: 40.0 Hz
Re: 5.1 ohms
Le: 1.4mH
Qms: 5.1
Qes: 0.22
Qts: 0.21
Vas: 193 L, 4.9 cuft
Xmax: 7mm
CONSTRUCTION
-Cast basket
-Double silicone spider with vented voice coil
