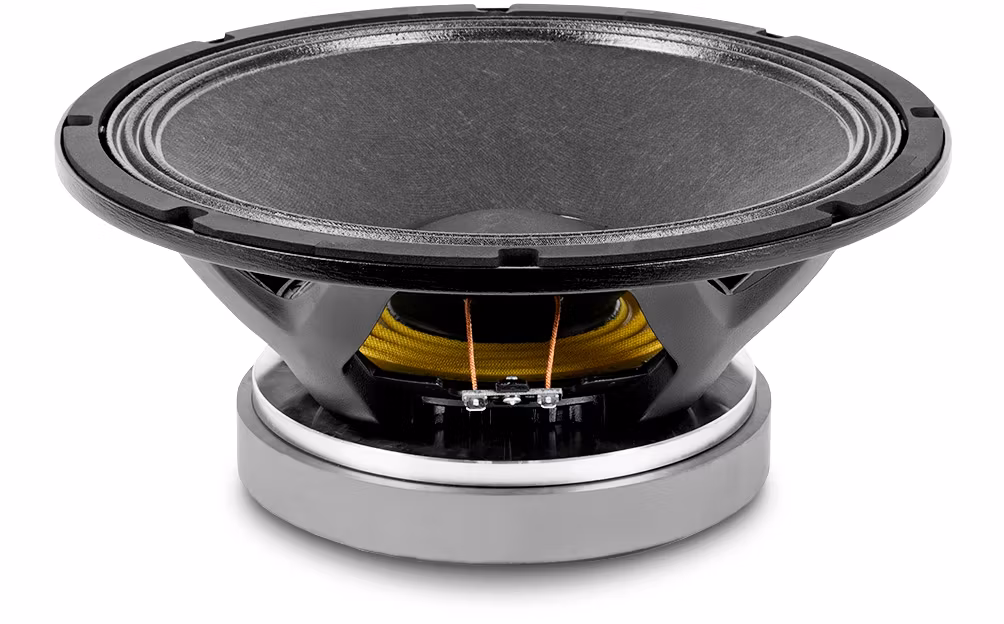

Beyma 12MCB700 - 8ohm

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

MEET MCB SERIES

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

300 mm 12 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

7.1 ohm

Frequency range

55-4000 Hz

Program power

1400 W

Recommended enclosure volume

40 l

Voice coil diameter

76.2 mm 3 in

BL factor

20.4 N/A

Moving mass

0.069 kg

Winding length

18 mm

Air gap height

9.5 mm

Xdamage pp

45 mm

PARAMETERS THIELE & SMALL

Fs

51 Hz

Re

5.4 ohm

Qms

3.9

Qes

0.29

Qts

0.27

Vas

59.5 l

Cms

139 µm / N

Rms

5.6 kg/s

Efficiency %

2.7

Sd

0.055 m²

Xmax

7 mm

Vd

385 cm³

Le @1 kHz

0.9 mH

CONSTRUCTION DETAILS

Depth

145 mm 5.7 in

Net weight

7.8 kg 17.2 lb

Total weight

9.5 kg 20.9 lb

Magnet

Ferrite
