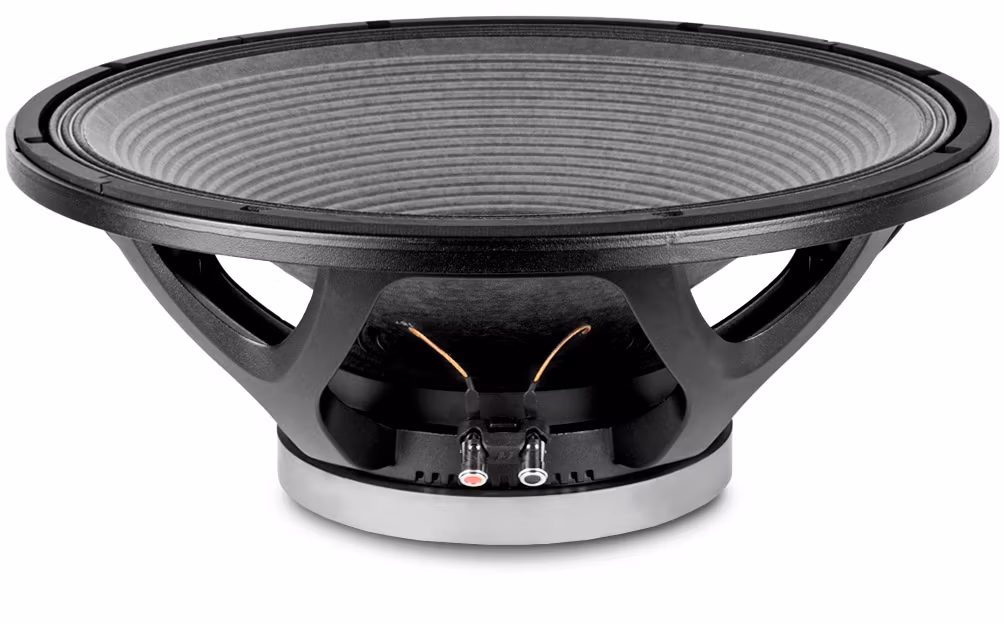

Beyma 18LX60V2/S - 8ohm

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

460 mm 18 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

6.4 ohm

Frequency range

25-1000 Hz

Program power

1400 W

Recommended enclosure volume

250 l

Voice coil diameter

101.6 mm 4 in

BL factor

21.8 N / A

Moving mass

0.215 kg

Winding length

20 mm

Air gap height

10 mm

Xdamage pp

47 mm

PARAMETERS THIELE & SMALL

Fs

35 Hz

Re

5.1 ohm

Qms

15.7

Qes

0.5

Qts

0.48

Vas

236 l

Cms

94.5 µm / N

Rms

3.1 kg/s

Efficiency %

1.9

Sd

0.132 m²

Xmax

8 mm

Vd

1056 cm³

Le @1 kHz

2.1 mH

CONSTRUCTION DETAILS

Depth

193 mm 7.6 in

Net weight

11.2 kg 25.8 lb

Total weight

12.5 kg 27.56 lb

Magnet

Ferrite
