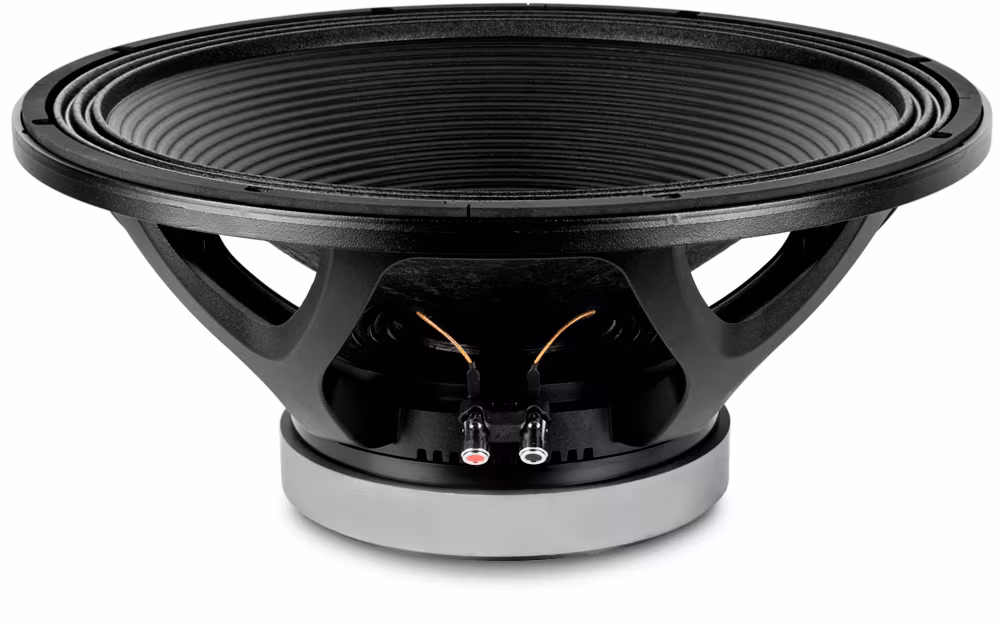

Beyma 18P1000FEV2/S 8ohm

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

1200 W AES

Nominal diameter

460 mm 18 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

5.5 ohm

Frequency range

30-2000 Hz

Program power

2400 W

Recommended enclosure volume

180 l

Voice coil diameter

101.6 mm 4 in

BL factor

26.8 N/A

Moving mass

0.221 Kg

Winding length

21 mm

Air gap height

12 mm

Xdamage pp

52 mm

PARAMETERS THIELE & SMALL

Fs

33 Hz

Re

5.2 ohm

Qms

10.5

Qes

0.33

Qts

0.32

Vas

230 l

Cms

105 µm / N

Rms

4.4 kg/s

Efficiency %

2.4

Sd

0.1250 m²

Xmax

8 mm

Vd

1000 cm³

Le @1 kHz

1.75 mH

CONSTRUCTION DETAILS

Depth

212 mm 8.3 in

Net weight

13.5 kg 29.8 lb

Total weight

15.8 kg 32.6 lb

Magnet

Ferrite
