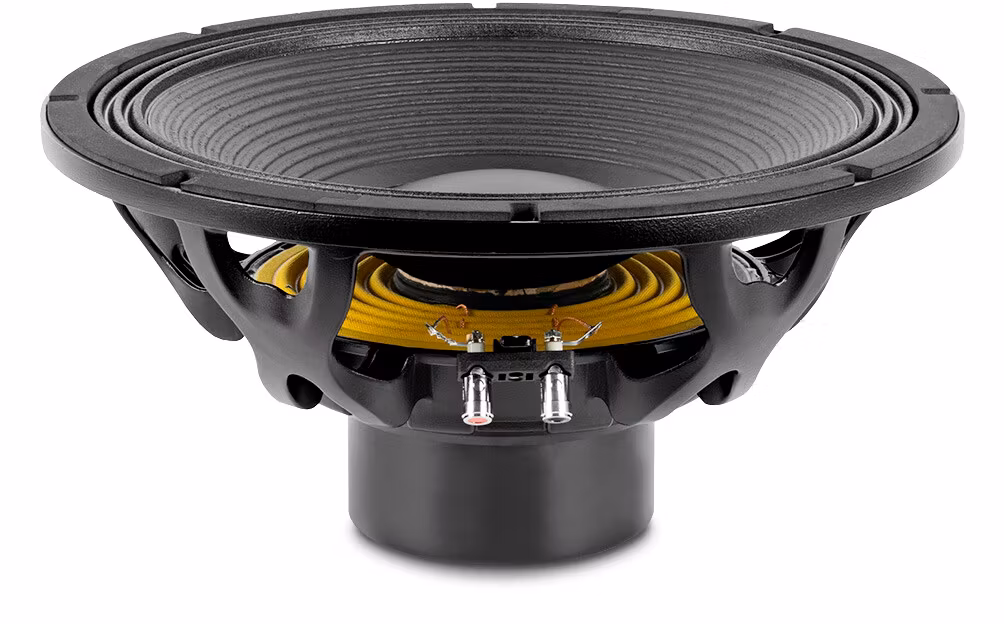

Beyma 15LEX1000ND 8ohm

  • 7 202 kr
  • 6 482 kr
Tillgänglig
Artikelnummer: 31543
Dela

DOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

MEET LEX1000ND SERIES

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

1000 W AES

Nominal diameter

380 mm 15 in

Sensitivity

97 dB 1 W @ 1 m @ ZN

Minimum impedance

6.8 ohm

Frequency range

40-1500 Hz

Program power

2000 W

Recommended enclosure volume

115 l

Voice coil diameter

88.9 mm 3.5 in

BL factor

21.9 N / A

Moving mass

0.147 kg

Winding length

25 mm

Air gap height

12 mm

Xdamage pp

65 mm

PARAMETERS THIELE & SMALL

Fs

41 Hz

Re

5.2 ohm

Qms

3.9

Qes

0.41

Qts

0.37

Vas

113 l

Cms

103 µm / N

Rms

9.7 kg/s

Efficiency %

1.8

Sd

0.088 m²

Xmax

10 mm

Vd

880 cm³

Le @1 kHz

1.1 mH

CONSTRUCTION DETAILS

Depth

189 mm 7.4 in

Net weight

7.6 kg 16.8 lb

Total weight

7.7 kg 17.0 lb

Magnet

Neodymium
