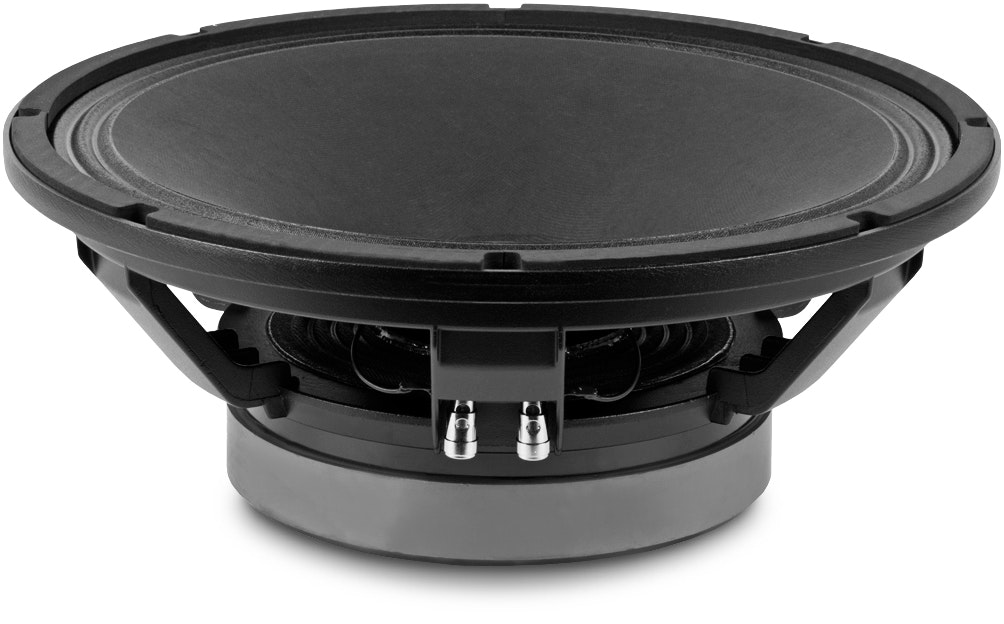

Beyma 15P80FE/N

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

800 W AES

Nominal diameter

380 mm 15 in

Sensitivity

101 dB 1 W @ 1 m @ 2?

Minimum impedance

6.3 ohm

Frequency range

30-4000 Hz

Program power

1600 W

Recommended enclosure volume

40 / 150 l / 1.4 / 5.3 ft³

Voice coil diameter

101.6 mm 4 in

BL factor

22.1 N/A

Moving mass

0.088 kg

Winding length

20 mm

Air gap height

12 mm

Xdamage pp

52 mm

PARAMETERS THIELE & SMALL

Fs

32 Hz

Re

5.3 ohm

Qms

5.5

Qes

0.19

Qts

0.18

Vas

305 l

Cms

279 µm / N

Rms

3.2 kg / s

Efficiency %

5

Sd

0.088 m²

Xmax

7.5 mm

Vd

660 cm³

Le @1 kHz

1.2 mH

CONSTRUCTION DETAILS

Depth

163 mm 6.42 in

Net weight

12.5 kg 27.56 lb

Total weight

13.5 kg 29.76 lb

Magnet

Ferrite
