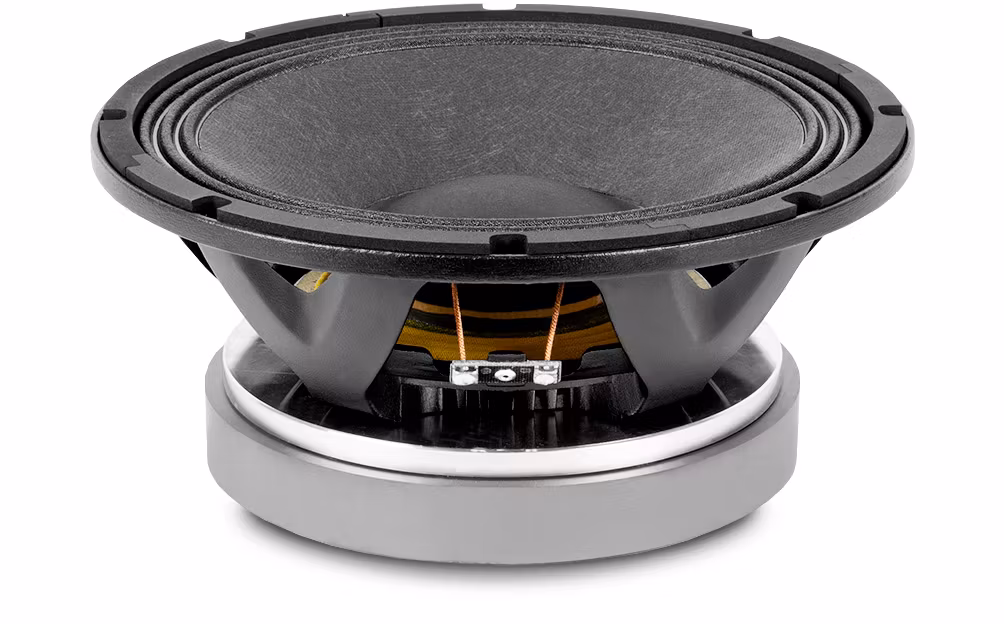

Beyma 10MCB700

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

MEET MCB SERIES

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

250 mm 10 in

Sensitivity

96 dB 1 W/1 m @ ZN

Minimum impedance

7.1 ohm

Frequency range

80-4000 Hz

Program power

1400 W

Recommended enclosure volume

14 l

Voice coil diameter

76.2 mm 3 in

BL factor

20.1 N/A

Moving mass

0.055 kg

Winding length

18 mm

Air gap height

9.5 mm

Xdamage pp

45 mm

PARAMETERS THIELE & SMALL

Fs

75 Hz

Re

5.3 ohm

Qms

4.9

Qes

0.35

Qts

0.33

Vas

13.2 l

Cms

76 µm / N

Rms

5.5 kg / s

Efficiency %

1.7

Sd

0.035 m²

Xmax

7 mm

Vd

245 cm³

Le @1 kHz

0.9 mH

CONSTRUCTION DETAILS

Depth

129 mm 5.1 in

Net weight

7.6 kg 16.7 lb

Total weight

8.1 kg 17.8 lb

Magnet

Ferrite
