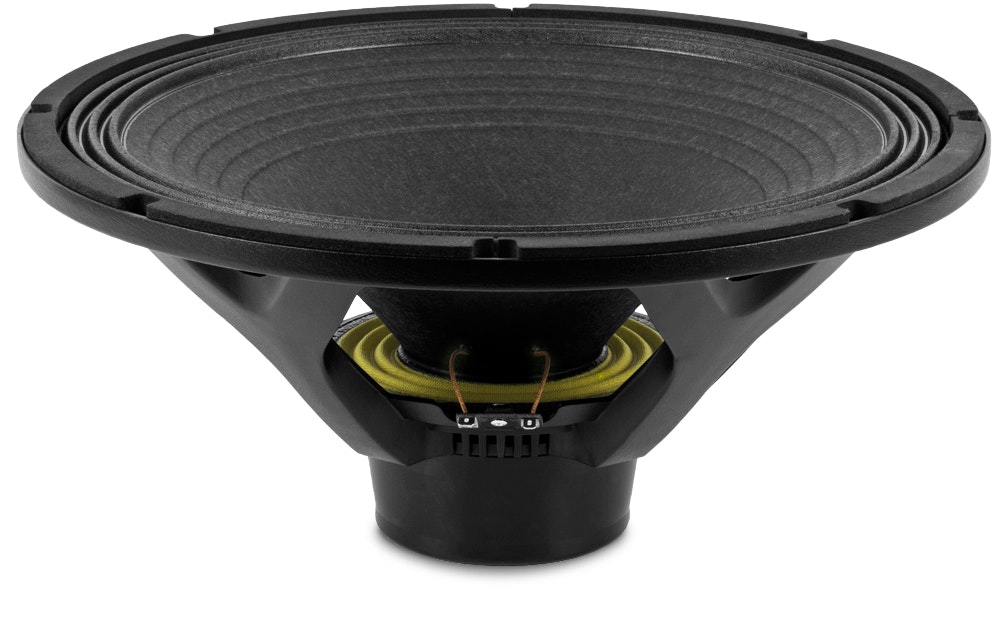

Beyma 15MC700ND 8ohm

DOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

380 mm 15 in

Sensitivity

100 dB 1 W @ 1 m @ ZN

Minimum impedance

7 ohm

Frequency range

50-4000 Hz

Program power

1400 W

Recommended enclosure volume

60 l

Voice coil diameter

76.2 mm 3 in

BL factor

22.6 N/A

Moving mass

0.107kg

Winding length

18 mm

Air gap height

10 mm

Xdamage pp

48 mm

PARAMETERS THIELE & SMALL

Fs

49 Hz

Re

5.2 ohm

Qms

3.6

Qes

0.34

Qts

0.31

Vas

105 l

Cms

96 µm / N

Rms

9.2 kg/s

Efficiency %

3.7

Sd

0.088 m²

Xmax

7 mm

Vd

616 cm³

Le @1 kHz

0.8 mH

CONSTRUCTION DETAILS

Depth

175 mm 6.9 in

Net weight

4.2 kg - 9.26 lb

Total weight

5.2 kg 11.5 lb

Magnet

Neodymium
