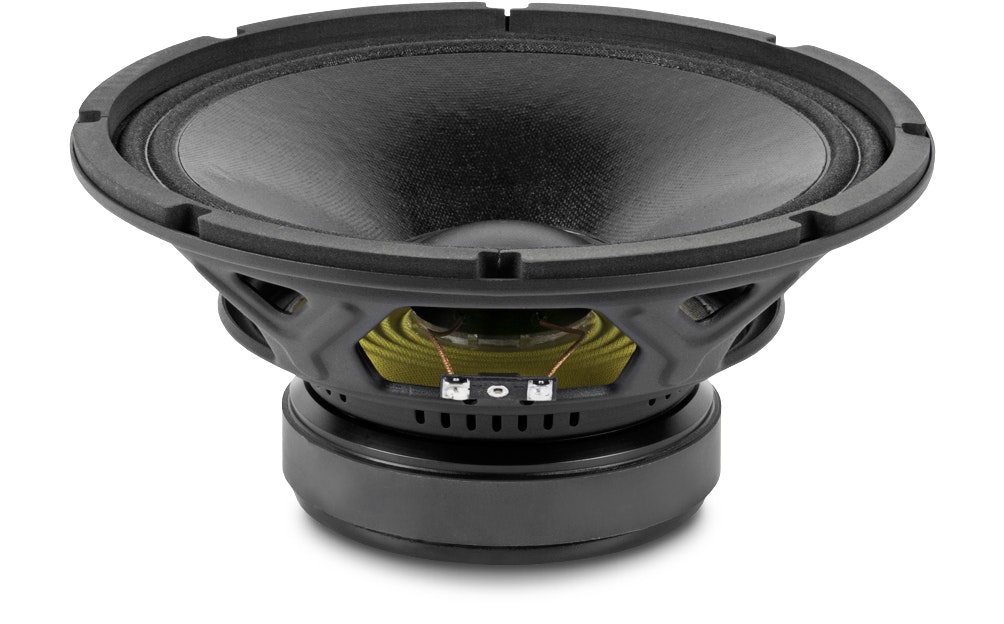

Beyma 10WRS300 - 16ohm

-

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

300 W AES

Nominal diameter

250 mm 10 in

Sensitivity

95 dB 1 W/1 m @ ZN

Minimum impedance

7.5 ohm

Frequency range

55-5000 Hz

Program power

600 W

Recommended enclosure volume

15 / 50 l 0.53 / 1.77 ft.³

Voice coil diameter

50.8 mm 2 in

BL factor

13.9 N/A

Moving mass

0.039 kg

Winding length

15 mm

Air gap height

8 mm

Xdamage pp

30 mm

PARAMETERS THIELE & SMALL

Fs

52 Hz

Re

6.1 ohm

Qms

5.5

Qes

0.4

Qts

0.38

Vas

42 l

Cms

242 µm / N

Rms

2.3 kg/s

Efficiency %

1.4

Sd

0.035 m²

Xmax

6 mm

Vd

210 cm³

Le @1 kHz

1 mH

CONSTRUCTION DETAILS

Depth

117 mm 4.6 in

Net weight

3.5 kg 7.72 lb

Total weight

3.9 kg 8.6 lb

Magnet

Ferrite
