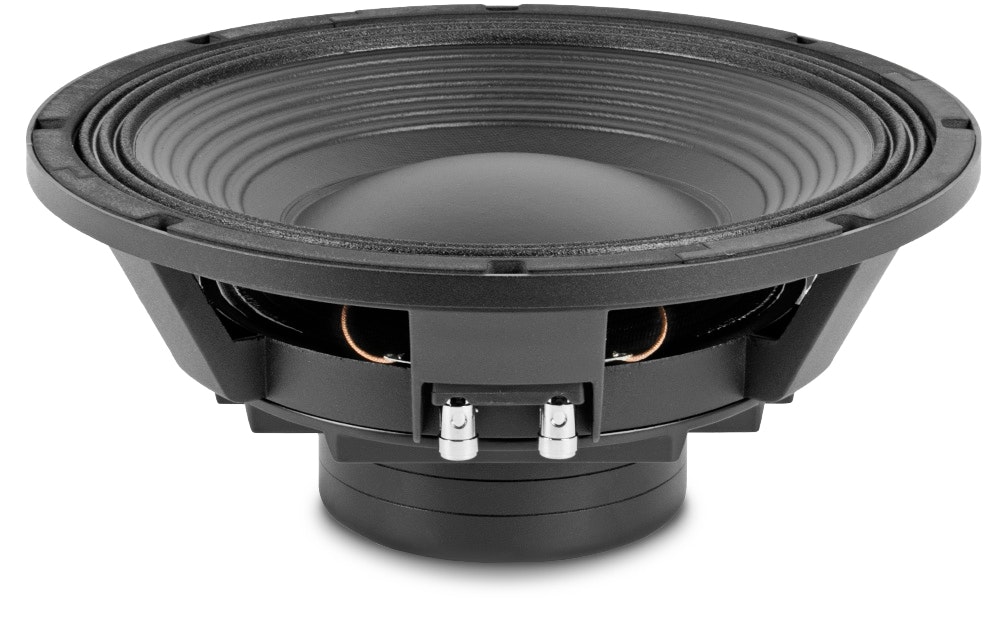

Beyma 12P1000ND - 8ohm

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

900 W AES

Nominal diameter

300 mm 12 in

Sensitivity

96 dB 1 W/1 m @ ZN

Minimum impedance

6.5 ohm

Frequency range

50-2000 Hz

Program power

1800 W

Recommended enclosure volume

20 / 60 l 0.7 / 2.24 ft³

Voice coil diameter

101.6 mm 4 in

BL factor

23.5 N / A

Moving mass

0.100 kg

Winding length

21 mm

Air gap height

12 mm

Xdamage pp

52 mm

PARAMETERS THIELE & SMALL

Fs

47 Hz

Re

5.1 ohm

Qms

7.9

Qes

0.27

Qts

0.26

Vas

49 l

Cms

115 µm / N

Rms

3.7 kg / s

Efficiency %

1.8

Sd

0.055 m²

Xmax

8 mm

Vd

440 cm³

Le @1 kHz

2 mH

CONSTRUCTION DETAILS

Depth

132 mm 5.20 in

Net weight

5.4 kg 11.88 lb

Total weight

6.1 kg 13.42 lb

Magnet

Neodymium
